【新品】MSI PRO B550M-B 微星主機板

NT$ 2,690
含稅 運費將於結帳時計算。

出貨時間

一般商品將於下單後三個工作日陸續出貨，預購品除外。

購物說明

有關於訂單成立與網站使用規定請參考服務條款

優惠組合

Free Package

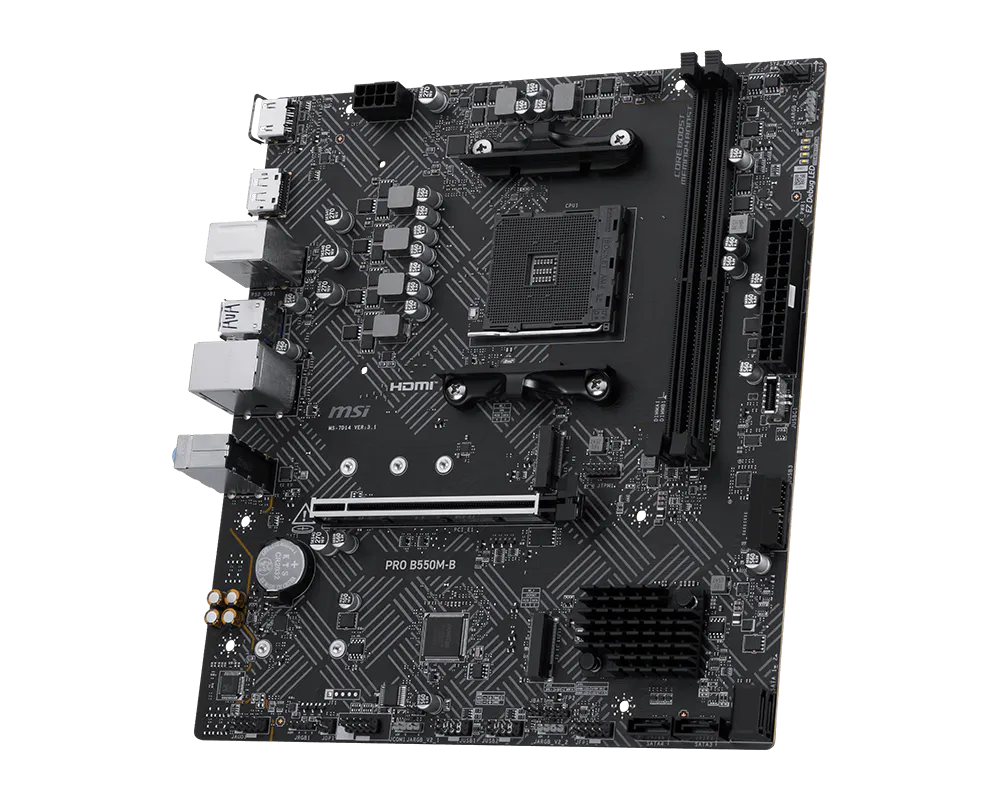

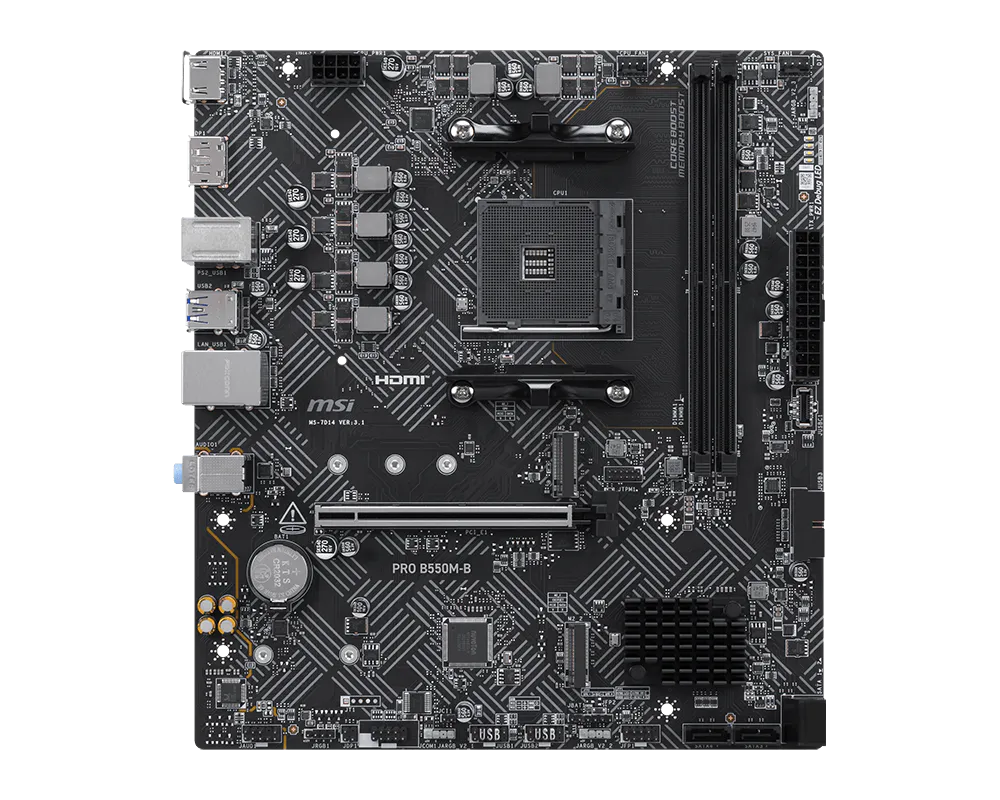

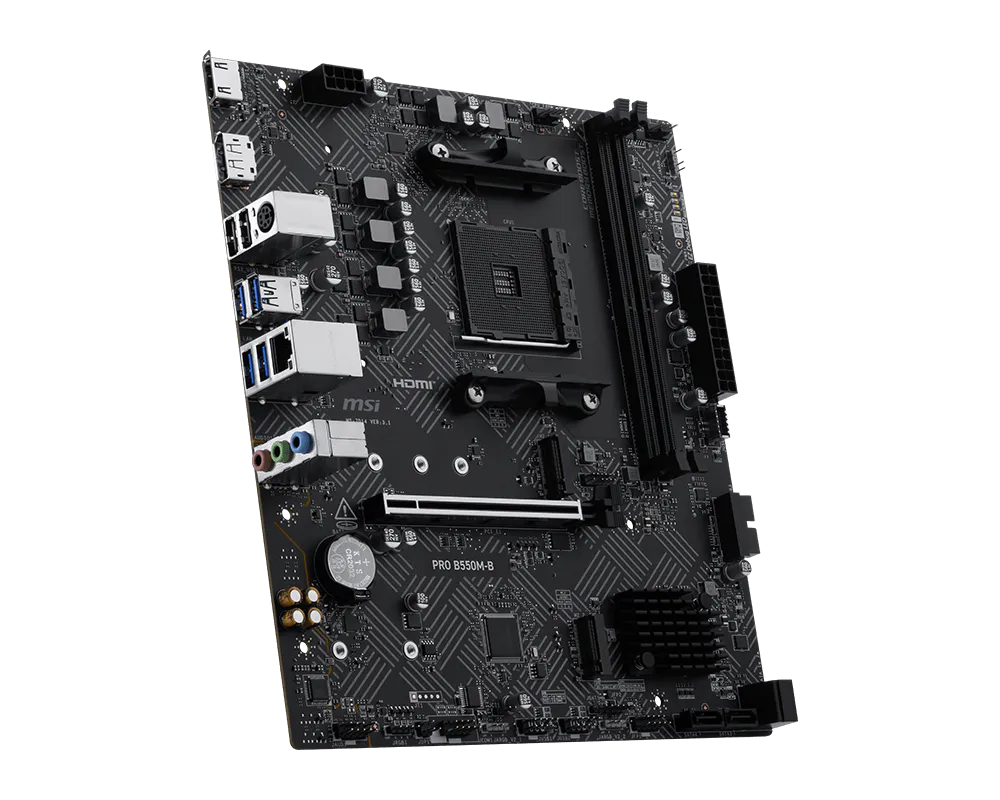

MSI PRO B550M-B MOTHERBOARD

微星主機板

規格表
  • 支援 AMD Ryzen™ 5000 系列、5000 G-系列、4000 G-系列、3000 系列和 3000 G-系列桌上型處理器
  • 支援 DDR4 記憶體，高達 4600+ MT/s (OC)
  • 閃電般的快速遊戲體驗 : PCIe 4.0 插槽、Lightning Gen4 x4 M.2
  • EZ DIY：EZ Debug LED、EZ Mounting
  • Audio Boost：為你的耳朵帶來錄音室等級的音效品質，提供最沉浸的遊戲體驗。

  • MSI Center：整合了所有 MSI 獨家工具，並擁有用戶友好的介面。


  • 規格表
Chipset AMD B550
CPU  Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4
Memory

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 3866+ MHz

Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.2, maximum resolution of 4K 60Hz*
Slot 1x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
4x SATA 6G (Qty)
RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

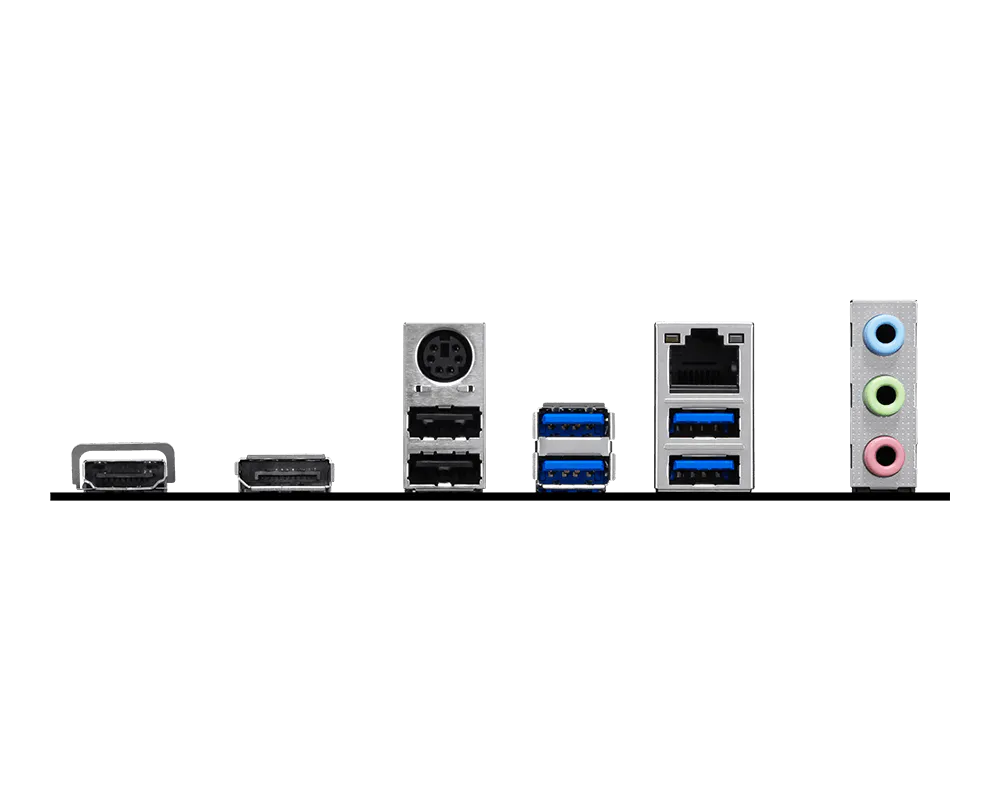

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Realtek® RTL8111H 1Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LED FEATURE 4x EZ Debug LED
PCB Info mATX
220mmx243.84mm
