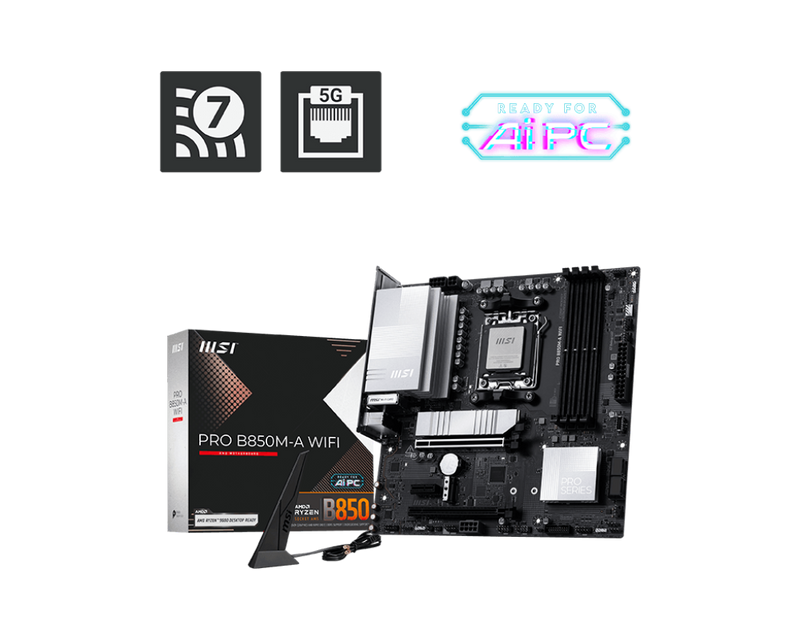

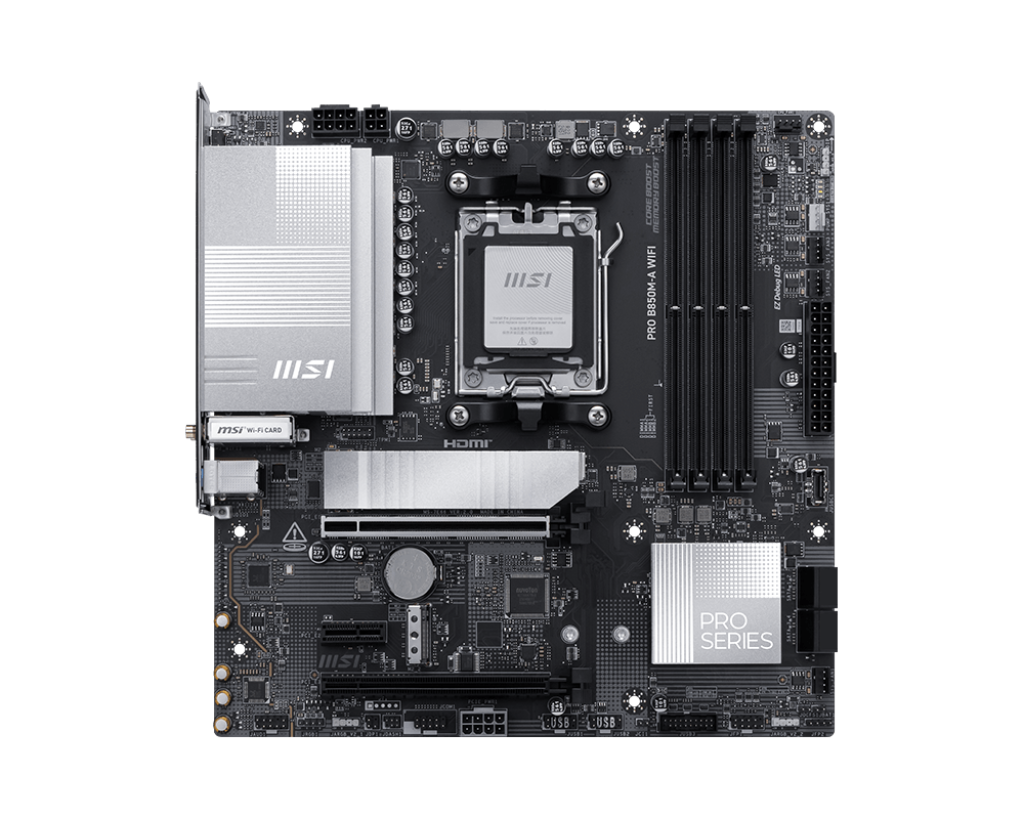

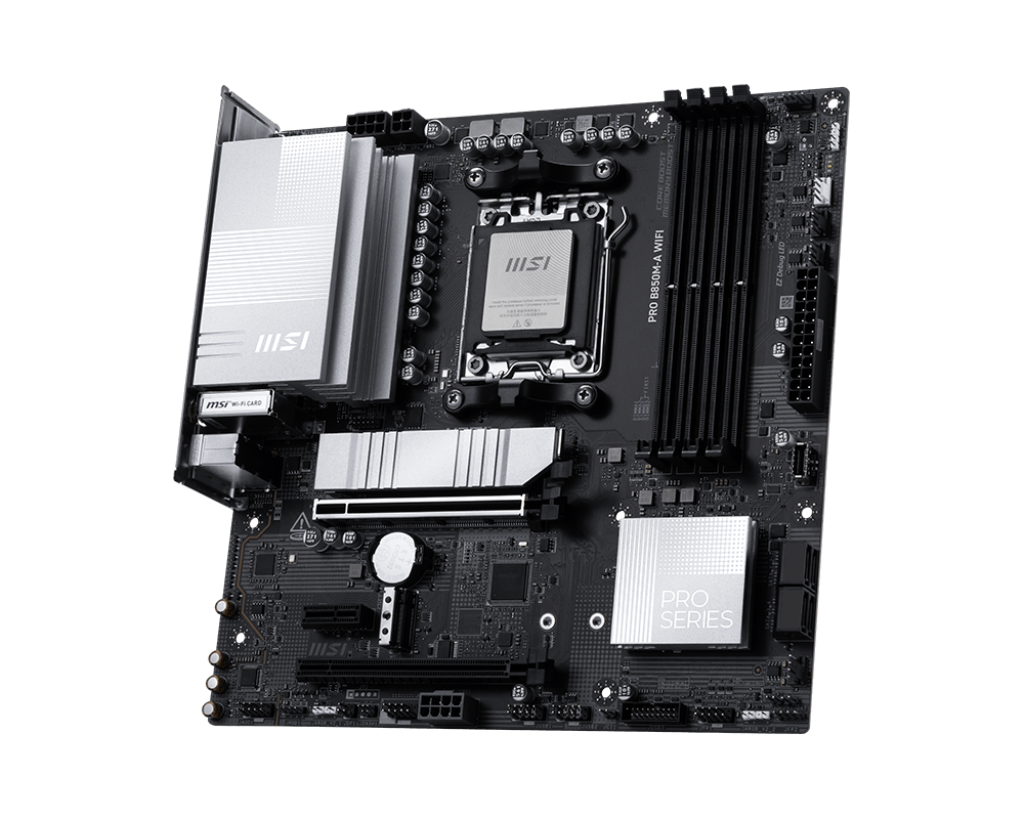

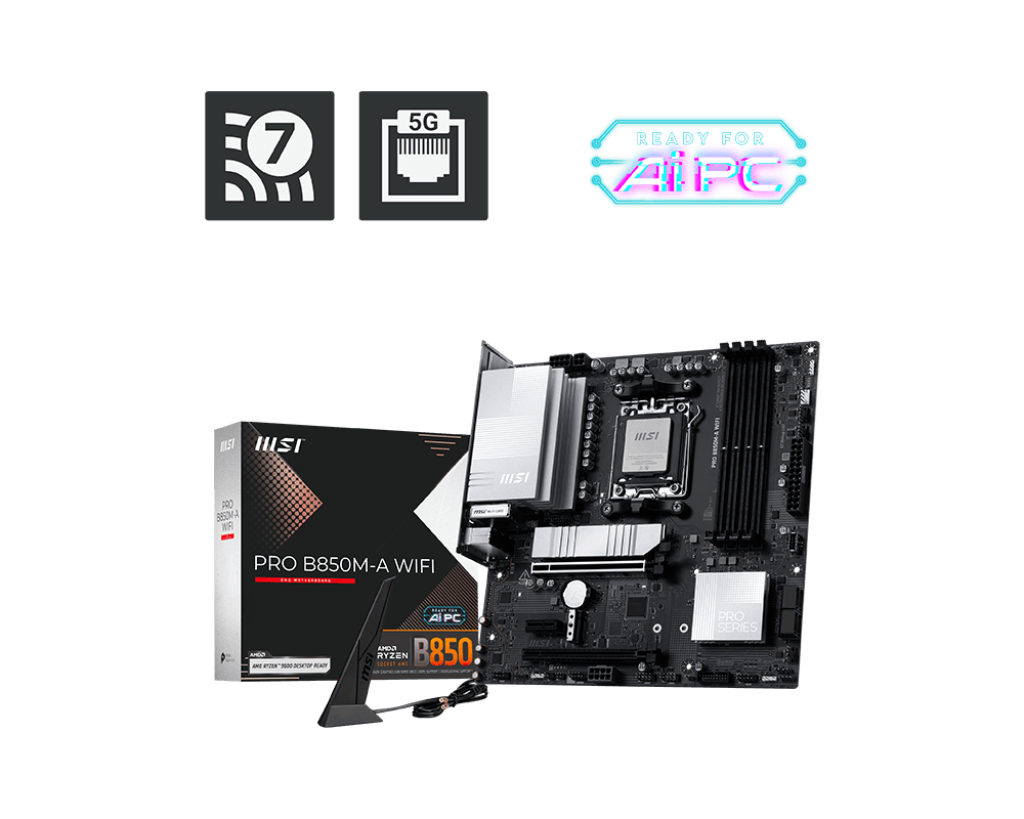

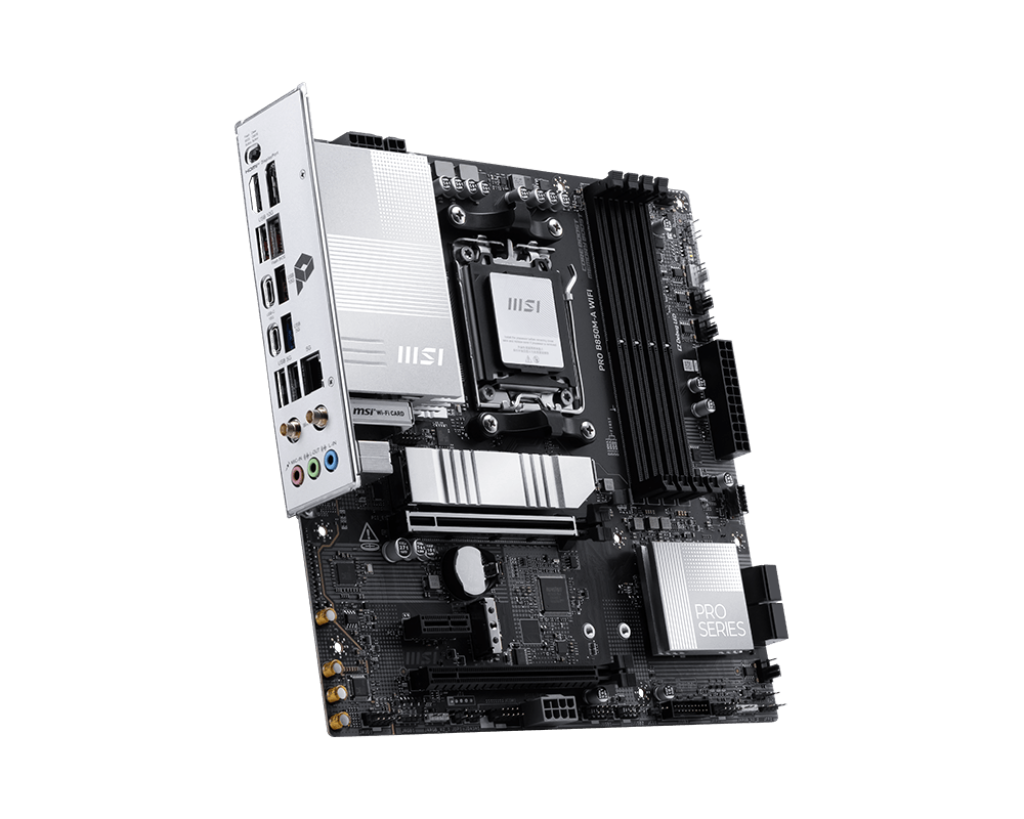

【MSI PRO】PRO B850M-A WIFI 微星主機板

NT$ 5,390
含稅 運費將於結帳時計算。

出貨時間

一般商品將於下單後三個工作日陸續出貨，預購品除外。

購物說明

有關於訂單成立與網站使用規定請參考服務條款

優惠組合

Free Package

PRO B850M-A WIFI MOTHERBOARD

規格表



  • 支援 AMD Ryzen™ 9000 / 8000 / 7000 系列桌上型處理器。
  • 支援 DDR5 記憶體，雙通道 DDR5 可達 DDR5 8200+ MT/s (OC)
  • 超性能: 8+2+1 Duet Rail 電源系統, 採用雙 8+4 pin CPU 電源連接埠、Core BoostMemory Boost，採用 2oz 厚度銅的6層伺服器等級PCB。
  • 散熱護甲 :延伸加大散熱片、附加 7W/mK 的 MOSFET 散熱墊、附加choke電感散熱墊以及 EZ M.2 Shield Frozr II，專為高效能系統和持久的使用體驗而設計。
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe 快拆和 EZ 天線。
  • 閃電極速遊戲體驗：PCIe 5.0 插槽、Lightning Gen 5 x4 M.2
  • 5G LAN 與 Wi-Fi 7 解決方案 - 專業和多媒體用途的最新解決方案，提供安全、穩定、高速的網路和資料傳輸
  • Audio Boost：為你的耳朵帶來錄音室等級的音效品質，提供最沉浸的遊戲體驗。





  • 規格表
晶片組 AMD B850
處理器 Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
記憶體



4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot



2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
音效 Realtek® ALC897
7.1-Channel High Definition Audio
儲存


2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
xxxxx
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

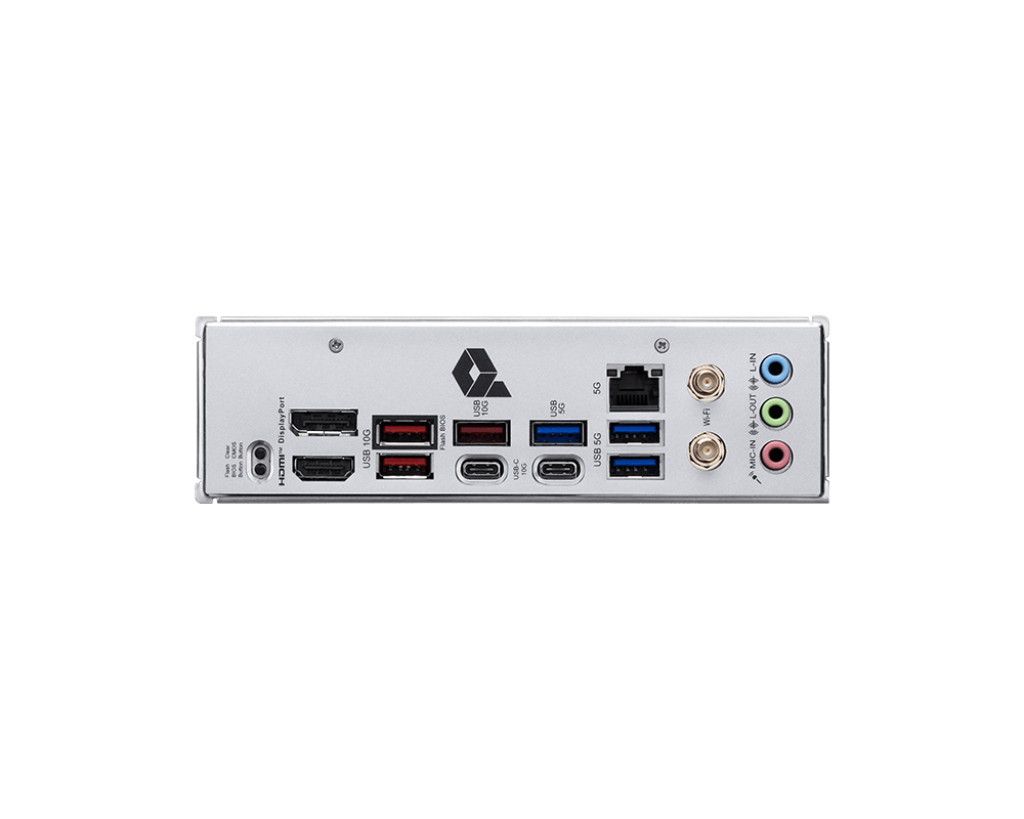

USB 4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Realtek® 8126-VB 5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
無線與藍牙

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
1x EZ Memory Detection LED
作業系統 Support for Windows® 11 64-bit
PCB Info mATX
243.84mmx243.84mm
