【2026熱銷推薦】MSI PRO B650-A WIFI 微星主機板

NT$ 5,490
含稅 運費將於結帳時計算。

出貨時間

一般商品將於下單後三個工作日陸續出貨，預購品除外。

購物說明

有關於訂單成立與網站使用規定請參考服務條款

優惠組合

Free Package

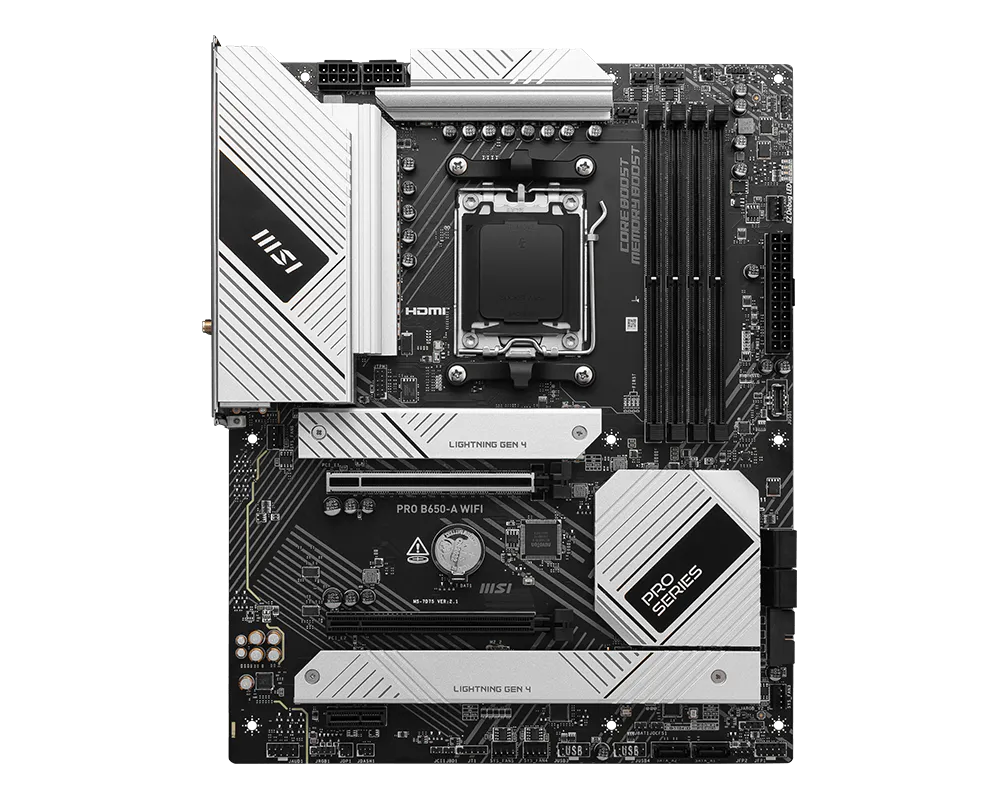

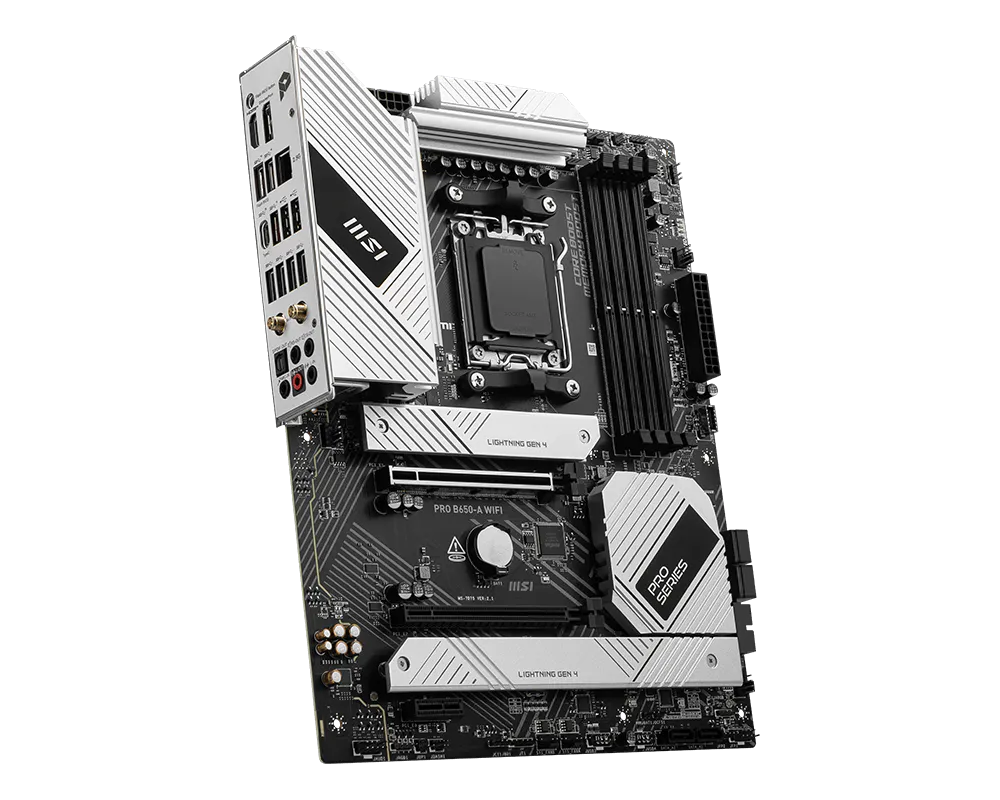

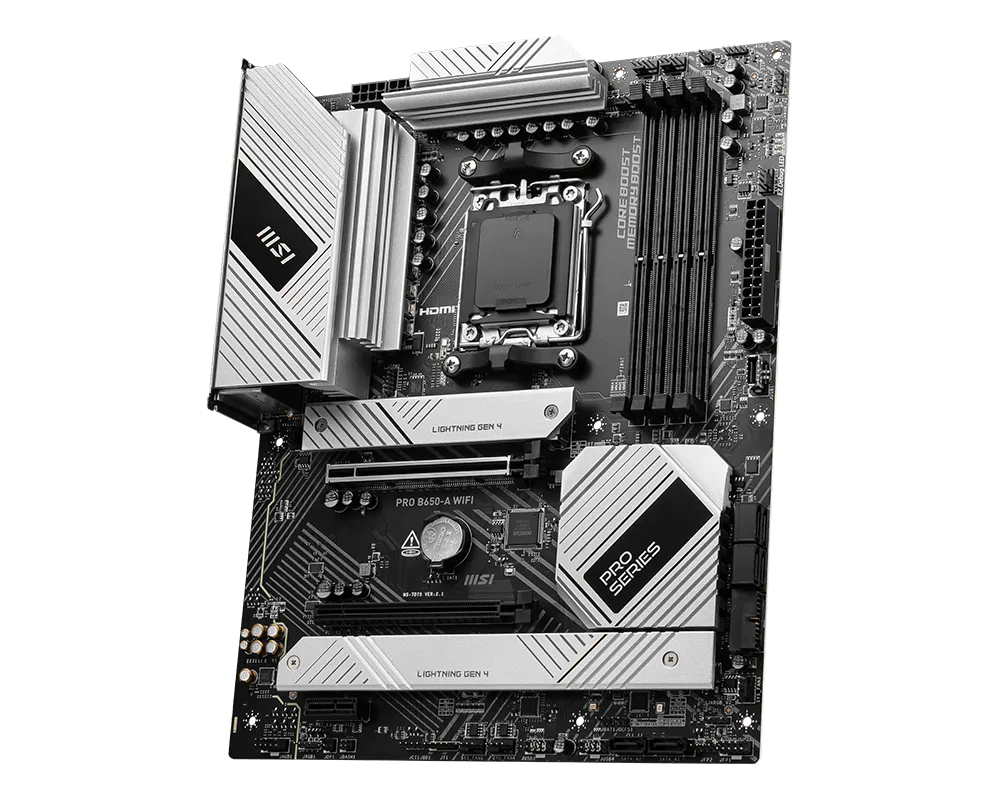

MSI PRO B650-A WIFI MOTHERBOARD

微星主機板

進一步了解
規格表
  • 支援 AMD Ryzen™ 9000 / 8000 / 7000 系列桌上型處理器。
  • 支援 DDR5 記憶體，雙通道 DDR5 7600+MHz (OC)
  • 超性能：14+2 DRPS 採用 80A SPS、雙 8-pin CPU 電源連接埠、Core Boost、Memory Boost
  • 散熱護甲：延伸加大散熱片、附加 7W/mK 的 MOSFET 散熱墊、附加choke電感散熱墊熱墊以及 M.2 Shield Frozr ，專為高效能系統和持久的使用體驗而設計。
  • 高品質 PCB : 6 層PCB 採用2oz 厚度銅和伺服器等級料件。
  • 閃電極速遊戲體驗：PCIe 4.0 插槽、Lightning Gen 4 x4 M.2 採用 M.2 Shield Frozr、USB 3.2 Gen 2x2
  • 2.5G LAN 和 Intel Wi-Fi 6E 解決方案 :針對專業工作者與娛樂創作者需求，升級網路解決方案，提供更安全、穩定、快速的連線體驗。
  • AUDIO BOOST 5: 讓您的耳朵沉浸在錄音室等級的音效品質


  • 規格表
Chipset AMD B650
CPU  Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4 port with HBR3, maximum resolution of 8K 60Hz*
Slot 2x PCI-E x16 slot (Qty)
• Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio Realtek® ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G (Qty)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek® RTL8125B 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**
LED FEATURE 4x EZ Debug LED
PCB Info ATX
243.84mmx304.8mm
