【618限量搶購】MEG Z890 ACE 微星主機板
NT$ 19,090
單位價格
/
無法提供
Free Package

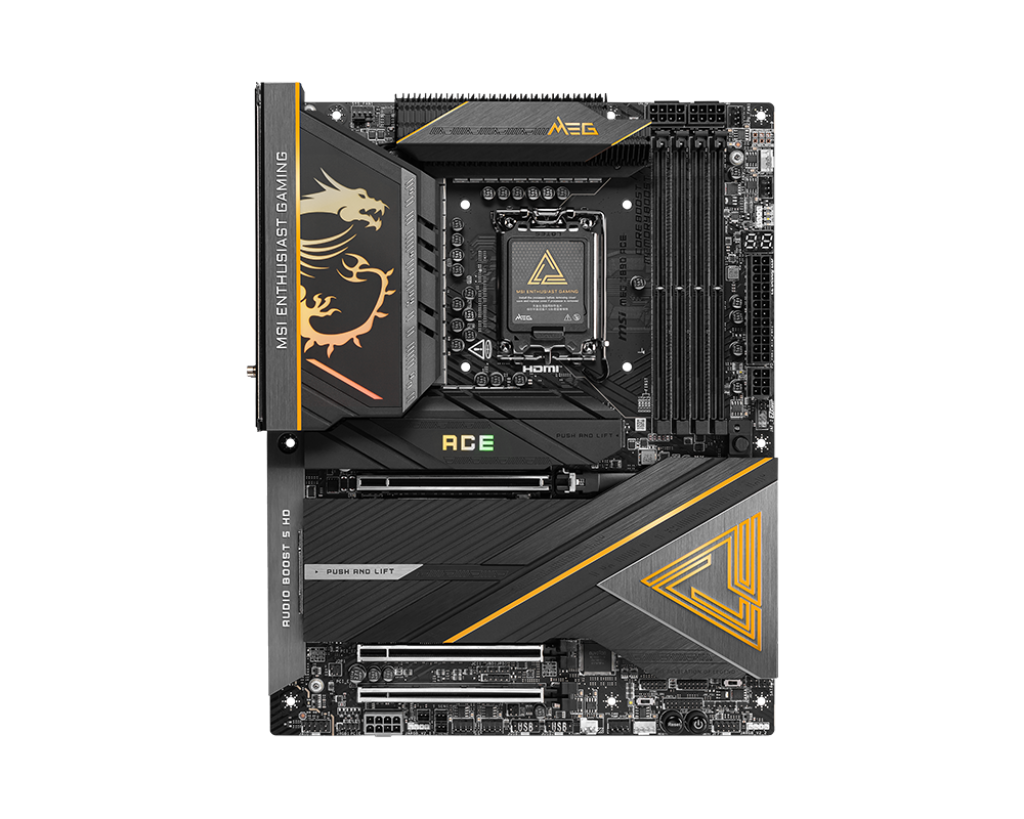

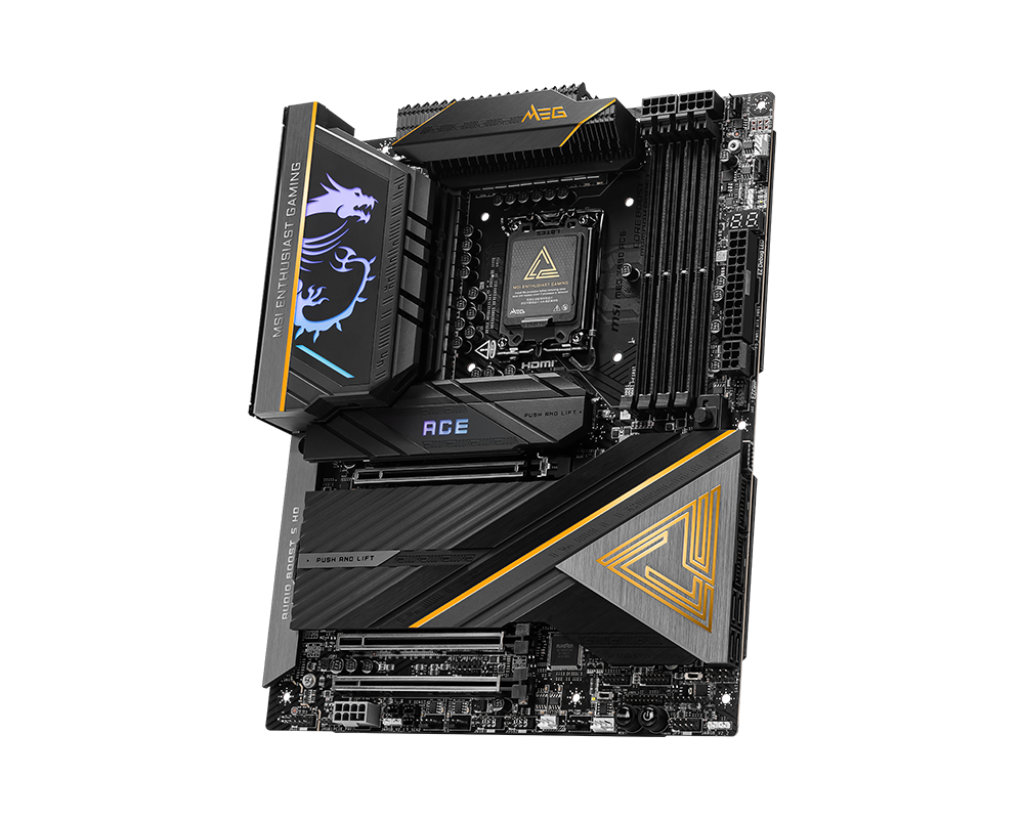

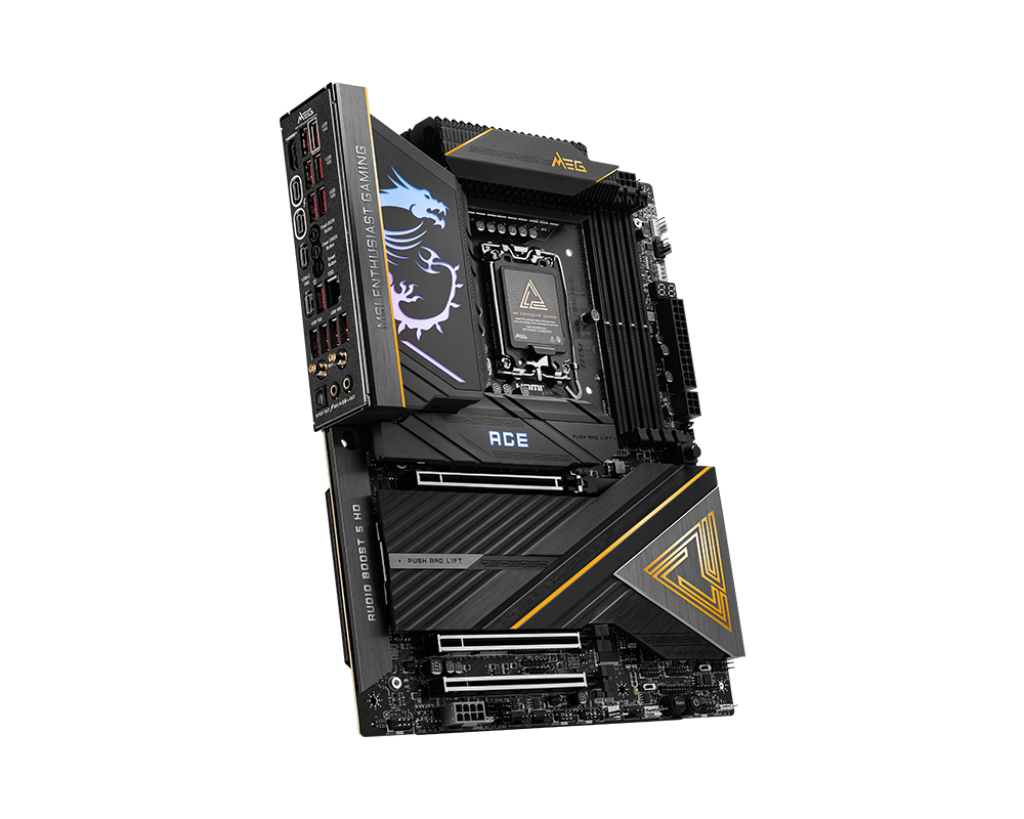

MEG Z890 ACE MOTHERBOARD
- 支援 LGA 1851 腳位的 Intel® Core™ Ultra 處理器 (Series 2)
- 支援 DDR5 記憶體，雙通道 DDR5 9200+ MT/s (OC)
- 超性能 : 24+2+1+1 Duet Rail 電源系統 110A SPS、OC Engine、雙 8-pin CPU 電源連接埠、Core Boost、Memory Boost、採用 2oz 厚度銅的 8 層伺服器等級PCB。
- 散熱護甲設計 : 波浪式鰭片設計、直觸交叉導熱管、MOSFET 底板, 9W/mK MOSFET 散熱墊片、雙面 M.2 Shield Frozr 散熱鎧甲和AI 軟體，提供出色的散熱效果。
- EZ DIY: EZ PCIe 快拆設計, 第二代 EZ M.2 Shield Frozr 散熱鎧甲, EZ M.2 Clip II 和 EZ 天線。
- 超功率技術 : Thunderbolt™ 4 連接埠、10G LAN 和 Full-speed Intel® Killer™ Wi-Fi 7 解決方案，為專業工作者和創意工作者提供安全、穩定和高速的連線解決方案。
- 閃電般的遊戲體驗：PCIe 5.0 插槽、內建 5 組 M.2 插槽，並搭載 Lightning Gen 5 解決方案。此外，前置 USB 20G 連接埠還具備 60W USB 快速充電技術，提供極速快感。
- Audio Boost 5 HD: 搭載最新高端 ALC4082 音效處理器，結合 ESS 音效 DAC 和放大器，提供令人驚豔的極致音效體驗。
- 規格表
-
晶片組 (chipset) Intel® Z890 CPU/ Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMMOnboard Graphics 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*SLOT 3x PCI-E x16 slot (Qty)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4內建音效 Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel儲存裝置 5x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280 devices
4x SATA 6G (Qty)RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devicesOnboard Thunderbolt 2x Thunderbolt4 ports (Rear)
Support up to 40Gbps transfer rate with Thunderbolt devices
Support up to 20Gbps transfer rate with USB4 devices
Support up to 10Gbps transfer rate with USB 3.2 devices
Support up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

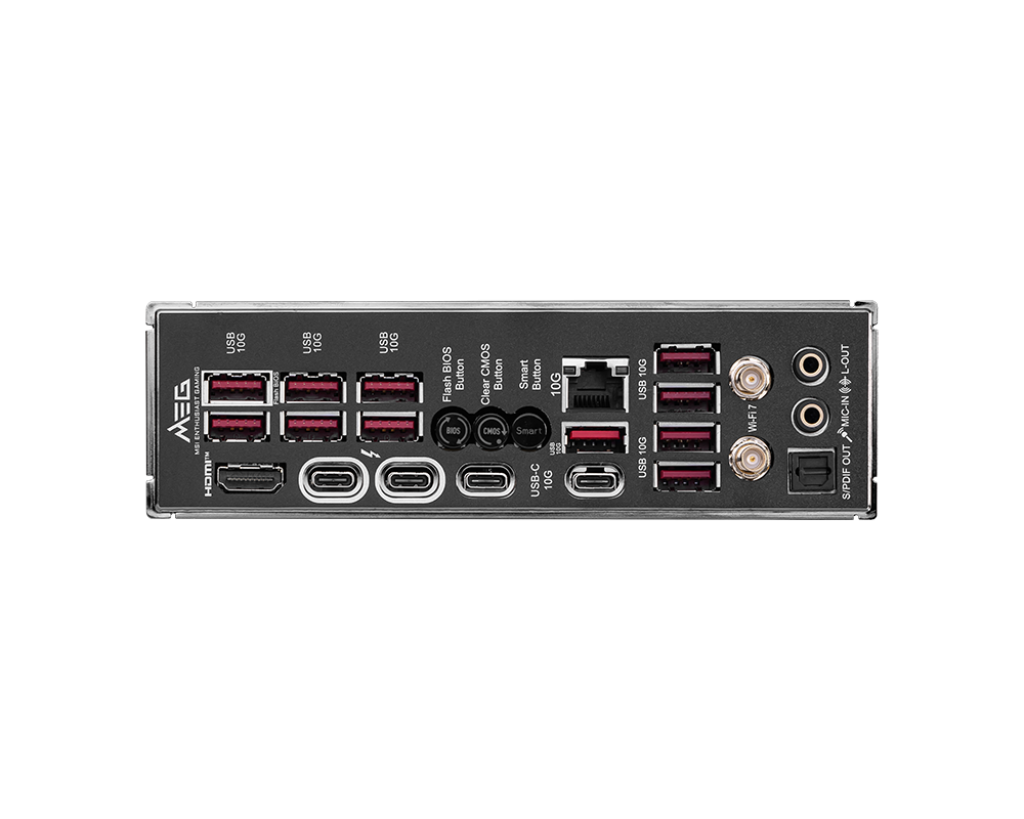

Support up to 8K displayUSB 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
11x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)LAN 1x Marvell® AQC113CS 10Gbps LAN Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x PUMP_SYS Fan
5x System Fan
1x ARGB+FAN+USB2.0 Header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports無線與藍芽 Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAMLED FEATURE 4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switchOPERATING SYSTEM Support for Windows® 11 64-bit PCB Info ATX
243.84mmx304.8mm
